effectus-R741/24

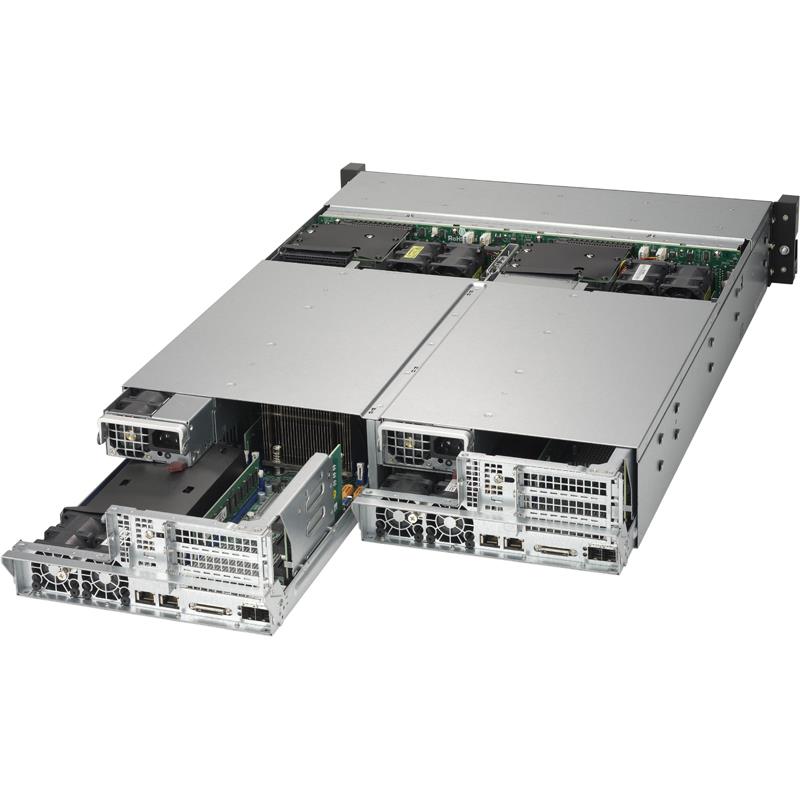

Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

• Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600  v4^†/ v3 family; QPI up to 9.6GT/s
• Up to 1TB^† ECC 3DS LRDIMM , up to DDR4- 2400^†MHz ; 8 DIMM slots
• 3 x PCI-E 3.0 x8 low-profile slots per controller
• Dual 10GBase-T LAN w/ Intel® X540 Per Node, 100Mb private Ethernet between controller nodes
• Dedicated node to node connectivity featuring high performance PCI-E 3.0  x8 and IPMI for robust node fail-over support
• 24 x shared hot-swap 2.5″ SAS drive bay with SES2
• SAS3 via Broadcom 3008 controller
• Server remote management: IPMI 2.0  / KVM over LAN / Media over LAN
• 1200W Redundant Power Supplies Titanium Level (96%)
